Exercise: Connect two Azure virtual networks using global virtual network peering

  • 5 minutes

Lab scenario

In this lab, you configure connectivity between the CoreServicesVnet and the ManufacturingVnet by adding peerings to allow traffic flow.

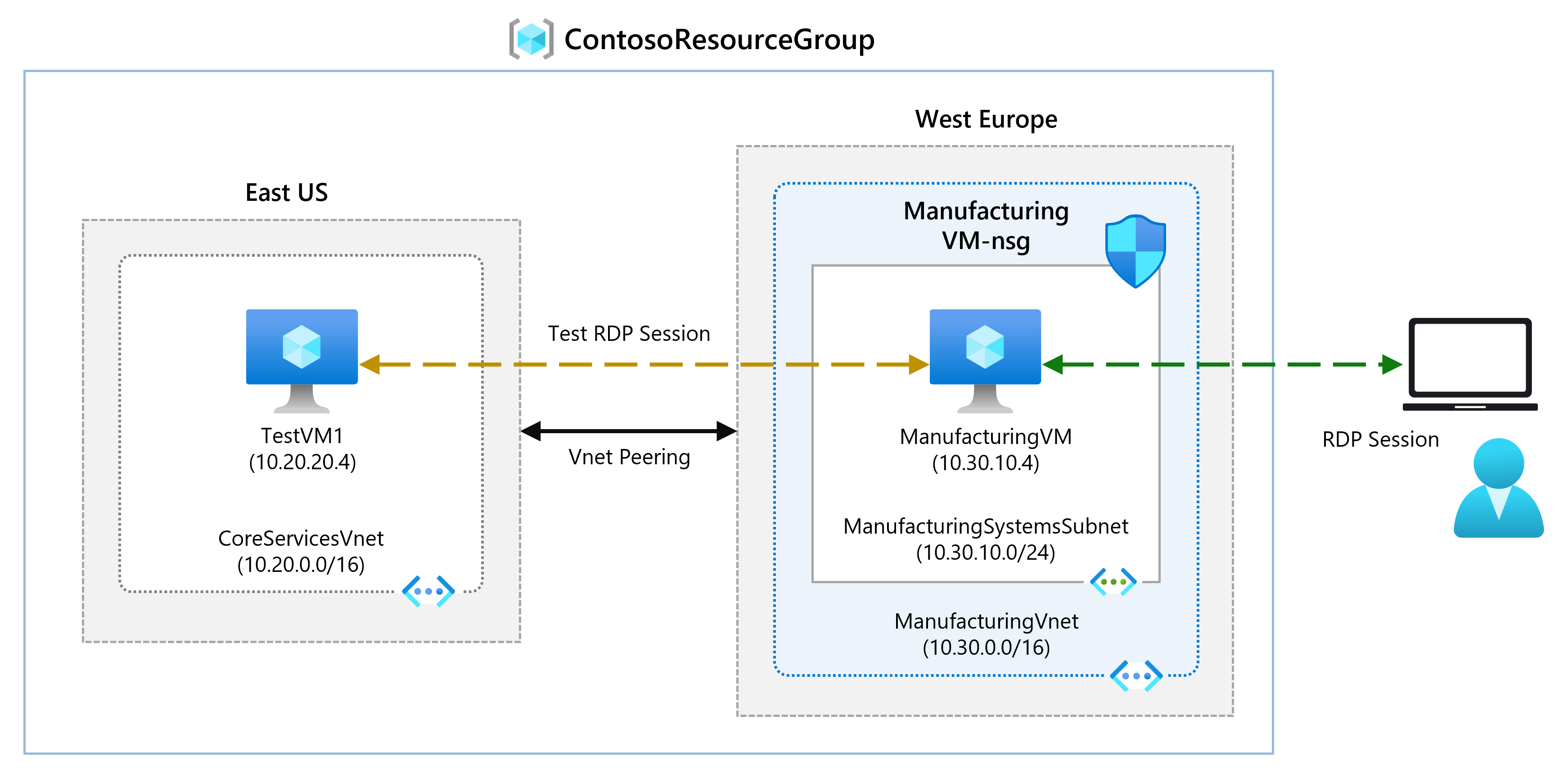

Architecture diagram

Diagram of the lab virtual network peering.

Job skills

  • Use a template to deploy the networking infrastructure.
  • Use RDP to connect to the test virtual machines.
  • Confirm the virtual machines can't communicate.
  • Create virtual network peerings.
  • Retest and verify the virtual machines can now communicate.

Note

To complete this exercise, you need an Azure subscription.

Launch the exercise, and follow the instructions. When finished, be sure to return to this page so you can continue learning.

Button to launch exercise.
