Not able to deploy AKS image from ACR from pipeline 2

Question

Not able to deploy AKS image from ACR from pipeline 2

Diptesh Kumar 331

I am using pipeline 1 as below ( which is building the image and pushing the image to ACR )

Pipeline1:

trigger:
- none

variables:
  imageName: 'aksimage'
  dockerfilePath: 'Dockerfile'
  buildContext: '.'
  acrLoginServer:: 'acrnnn.azurecr.io'
  dockerRegistryServiceConnection: 'April27ACR'

parameters:
- name: testtag
  displayName: 'Tag to Build and Deploy'
  type: string
  default: 'latest'

pool:
  vmImage: 'ubuntu-latest'

stages:
- stage: Build
  displayName: Build and Push Docker Image
  jobs:
  - job: BuildJob
    steps:
    - checkout: self

    - task: Docker@2
      displayName: 'Build and Push Docker Image to ACR'
      inputs:
        containerRegistry: '$(dockerRegistryServiceConnection)' # <- not hardcoded 'scn'
        repository: '$(imageName)'    # just aksimage
        command: 'buildAndPush'
        Dockerfile: '$(dockerfilePath)'
        buildContext: '$(buildContext)'
        tags: |
          ${{ parameters.testtag }}



    - task: PublishPipelineArtifact@1
      displayName: 'Publish deployment.yaml as Artifact'
      inputs:
        targetPath: '$(Build.SourcesDirectory)'
        artifactName: 'deployment-files'

and below is the deployment file :

apiVersion: apps/v1
kind: Deployment
metadata:
  name: aks-agent-deployment
  labels:
    app: aks-agent-deployment
spec:
  replicas: 10
  selector:
    matchLabels:
      app: aks-agent-deployment
  template:
    metadata:
      labels:
        app: aks-agent-deployment
    spec:
      imagePullSecrets:
      - name: acr-secret  # Used to pull from ACR
      containers:
      - name: azp-agent
        image: acrnnn.azurecr.io/aksimage:__IMAGETAG__
        ports:
        - containerPort: 80
        env:
        - name: AZP_URL
          value: "https://dev.azure.com/nextops123/"
        - name: AZP_POOL
          value: "AKSPool"
        - name: AZP_TOKEN
          valueFrom:
            secretKeyRef:
              name: azp-secret
              key: AZP_TOKEN

and below is pipeline2:

resources:
  pipelines:
    - pipeline: pipelineA      # alias you’ll use
      source: AKSAGENT-publish
      project: aus
      trigger:
        branches:
          include:
            - main

stages:
  - stage: UseArtifact
    jobs:
      - job: DownloadAndUse
        steps:
          - download: pipelineA
            artifact: deployment-files   # correct artifact name here!
          - script: |
              echo "Listing EVERYTHING under workspace"
              find $(Pipeline.Workspace)
            displayName: 'Full Tree Listing'

          - script: |
              echo "Here is deployment.yaml"
              cat $(Pipeline.Workspace)/pipelineA/deployment-files/deployment.yaml
            displayName: 'Show deployment.yaml'
          - task: Kubernetes@1
            displayName: 'Deploy to AKS'
            inputs:
              connectionType: 'Kubernetes Service Connection'
              kubernetesServiceEndpoint: 'AKSApril27'
              namespace: 'default'
              command: 'apply'
              useConfigurationFile: true
              configuration: '$(Pipeline.Workspace)/pipelineA/deployment-files/deployment.yaml'
              secretType: 'dockerRegistry'
              containerRegistry: 'acrnnn.azurecr.io'  # ACR URL
              image: 'acrnnn.azurecr.io/aksimage:$(imageTag)'  # Use the resolved tag here











And below is the error I am seeing the in the POD logs:

  ContainersReady             False
  PodScheduled                True
Volumes:
  kube-api-access-hww2c:
    Type:                    Projected (a volume that contains injected data from multiple sources)
    TokenExpirationSeconds:  3607
    ConfigMapName:           kube-root-ca.crt
    ConfigMapOptional:       <nil>
    DownwardAPI:             true
QoS Class:                   BestEffort
Node-Selectors:              <none>
Tolerations:                 node.kubernetes.io/not-ready:NoExecute op=Exists for 300s
                             node.kubernetes.io/unreachable:NoExecute op=Exists for 300s
Events:
  Type     Reason         Age                 From               Message
  ----     ------         ----                ----               -------
  Normal   Scheduled      2m2s                default-scheduler  Successfully assigned default/aks-agent-deployment-6f764799b4-4d224 to aks-tt-60570973-vmss000001
  Warning  InspectFailed  9s (x11 over 2m1s)  kubelet            Failed to apply default image tag "acrnnn.azurecr.io/aksimage:$(imageTag)": couldn't parse image name "acrnnn.azurecr.io/aksimage:$(imageTag)": invalid reference format
  Warning  Failed         9s (x11 over 2m1s)  kubelet            Error: InvalidImageName

I am trying to generate artifact having deployment file in the pipeline 1 and I am trying to download and use in pipeline 2 but I am getting error as below , so AKS deployment is failing , Please suggest fix and let me know what could be the issue , Thank you

Luke Murray 11,351 Reputation points MVP

2025-04-28T03:02:26.2766667+00:00

The problem, seems to be the $(imageTag) variable, as in the POD logs it should be the actual version not the variable name, as a test, can you quickly hard code this in?
Diptesh Kumar 331 Reputation points

2025-04-28T03:06:22.6066667+00:00

I am not planning to hard code
Luke Murray 11,351 Reputation points MVP

2025-04-28T03:09:12.05+00:00

I mean't as a test, if it works, we know the problem is with the variable logic, if it doesn't the problem is elseware.
Diptesh Kumar 331 Reputation points

2025-04-28T04:30:24.86+00:00

Hi Luke,

If i hard code that means I should run only pipeline 2 only right?
Diptesh Kumar 331 Reputation points

2025-04-28T07:23:11.4833333+00:00

@RithwikBojja @vinod pittala

Any chance to look my question above?
Luke Murray 11,351 Reputation points MVP

2025-04-28T19:29:00.3833333+00:00

By the looks of it, yep, as the build is already done.

1 answer

Your answer

Luke Murray 11,351 Reputation points MVP

2025-04-28T03:02:26.2766667+00:00

The problem, seems to be the $(imageTag) variable, as in the POD logs it should be the actual version not the variable name, as a test, can you quickly hard code this in?
Diptesh Kumar 331 Reputation points

2025-04-28T03:06:22.6066667+00:00

I am not planning to hard code
Luke Murray 11,351 Reputation points MVP

2025-04-28T03:09:12.05+00:00

I mean't as a test, if it works, we know the problem is with the variable logic, if it doesn't the problem is elseware.
Diptesh Kumar 331 Reputation points

2025-04-28T04:30:24.86+00:00

Hi Luke,

If i hard code that means I should run only pipeline 2 only right?
Diptesh Kumar 331 Reputation points

2025-04-28T07:23:11.4833333+00:00

@RithwikBojja @vinod pittala

Any chance to look my question above?
Luke Murray 11,351 Reputation points MVP

2025-04-28T19:29:00.3833333+00:00

By the looks of it, yep, as the build is already done.

Answer 1

To build the image and push it to ACR then deploy the image into AKS. Follow the below steps: I tried this in my test environment in two ways and succeeded.

The one approach is simple and clear way to do this job from ACR to AKS, using service connection. without PAT.
Another approach is yours's I successfully achieve this too, with PAT

I will demonstrate both methods to help you understand and resolve your case.

Approach:

create the service connection in azure DevOps to enable secure connection b/w your subscription

Recommended:

App registration (automatic)
Work identity federation
Subscription level

create Docker file and index.html

in my case I used below simple docker file and html

Simple Docker file:

FROM nginx:alpine
COPY index.html /usr/share/nginx/html/index.html
EXPOSE 80

Simple html file:

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <title>Welcome to Nginx</title>
</head>
<body>
  <h1>Hello from Nginx on Alpine!</h1>
  <p>This is a simple static HTML page.</p>
</body>
</html>

Create Resource Group:

az group create -l centralindia -n anji-rg

create Container registry:

az acr create -g anji-rg -n acranji2654 --sku Basic

Create aks cluster by attaching the acr in-order to communicate:

az aks create -g anji-rg -n aksanji2654 -c 2 --attach-acr acranji2654

Configure AKS to communicate with clusters:

az aks get-credentials -g anji-rg -n aksanji2654 --overwrite-existing

Later create new pipeline by selecting Deploy to azure Kubernetes service by choosing your subscription then it will open configuration page then give your cluster name along with your registry details. Then it will generate pipeline file.

After pipeline got succeeded you will get two manifest files like deployment.yml & service.yml

Note: For the first time, you should grant permission to deploy the environment by opening another tab on the pipeline page.

The above process is usually followed. However, you can also create your own HTML file and custom Docker file using this same approach. It is easy to reuse and modify any files.

Screenshot 2025-05-02 173827

Approach:

Regarding your approach, ensure you grant the correct permissions to your PAT and then save it in the pipeline variables.

Code: Read & Write
Build: Read & Execute

I will share my files to help you understand. You can configure your files by referring to these examples.

Make sure to update each service connection name separately. For example, the AKS service connection has one AKS service connection created, and similarly for ACR. Please refer to the details below.

Azure-pipeline.yml

trigger:
- main

variables:
  dockerRegistryServiceConnection: 'acranji2654'
  imageRepository: 'tesproject'
  containerRegistry: 'acranji2654.azurecr.io'
  dockerfilePath: '**/Dockerfile'
  tag: '$(Build.BuildId)'
  imagePullSecret: 'acranji2654f506-auth'
  vmImageName: 'ubuntu-latest'

stages:
- stage: Build
  displayName: Build and Push Image

  jobs:
  - job: Build
    displayName: Build
    pool:
      vmImage: $(vmImageName)

    steps:
    - task: Docker@2
      displayName: Build and Push Docker Image
      inputs:
        command: buildAndPush
        repository: $(imageRepository)
        dockerfile: $(dockerfilePath)
        containerRegistry: $(dockerRegistryServiceConnection)
        tags: |
          $(tag)
    - publish: manifests
      artifact: manifests
- stage: Deploy
  displayName: Deploy to AKS
  dependsOn: Build
  jobs:
  - deployment: Deploy
    displayName: Deploy to AKS Cluster
    pool:
      vmImage: $(vmImageName)
    environment: 'Tesproject.default'
    strategy:
      runOnce:
        deploy:
          steps:
          - download: current
            artifact: manifests
          - task: KubernetesManifest@0
            displayName: Create imagePullSecret
            inputs:
              action: createSecret
              secretName: $(imagePullSecret)
              dockerRegistryEndpoint: $(dockerRegistryServiceConnection)
              kubernetesServiceConnection: 'aksanji2654-default'
              namespace: 'default'
          - task: KubernetesManifest@0
            displayName: Create AZP_TOKEN Secret
            inputs:
              action: deploy
              kubernetesServiceConnection: 'aksanji2654-default'
              namespace: 'default'
              manifests: |
                $(Pipeline.Workspace)/manifests/azp-secret.yaml
          - task: KubernetesManifest@0
            displayName: Deploy App to AKS
            inputs:
              action: deploy
              kubernetesServiceConnection: 'aksanji2654-default'
              namespace: 'default'
              manifests: |
                $(Pipeline.Workspace)/manifests/deployment.yml
                $(Pipeline.Workspace)/manifests/service.yml
              imagePullSecrets: |
                $(imagePullSecret)
              containers: |
                $(containerRegistry)/$(imageRepository):$(tag)

deployment.yml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: tesproject
  labels:
    app: tesproject
spec:
  replicas: 1
  selector:
    matchLabels:
      app: tesproject
  template:
    metadata:
      labels:
        app: tesproject
    spec:
      containers:
      - name: tesproject
        image: acranji2654.azurecr.io/tesproject:$(Build.BuildId)
        ports:
        - containerPort: 80
      imagePullSecrets:
      - name: acranji2654f506-auth

service.yml

apiVersion: v1
kind: Service
metadata:
    name: tesproject
spec:
    type: LoadBalancer
    ports:
    - port: 80
    selector:
        app: tesproject

Make sure you have to create a file called azp-secret.yaml

It keeps your PAT securely stored in the Kubernetes cluster, also the agent reads this secret via environment variable or volume mount when it starts up.

azp-secret.yaml

apiVersion: v1
kind: Secret
metadata:
  name: azp-token-secret
type: Opaque
stringData:
  AZP_TOKEN: $(AZP_TOKEN)

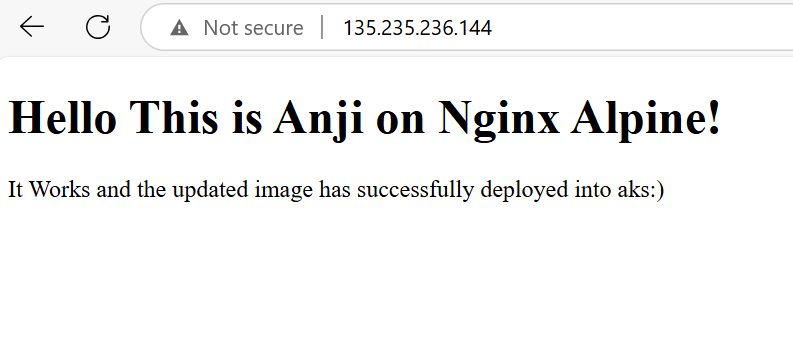

2025-05-02 19_35_00-

2025-05-02 18_21_52-● test - test - Visual Studio Code

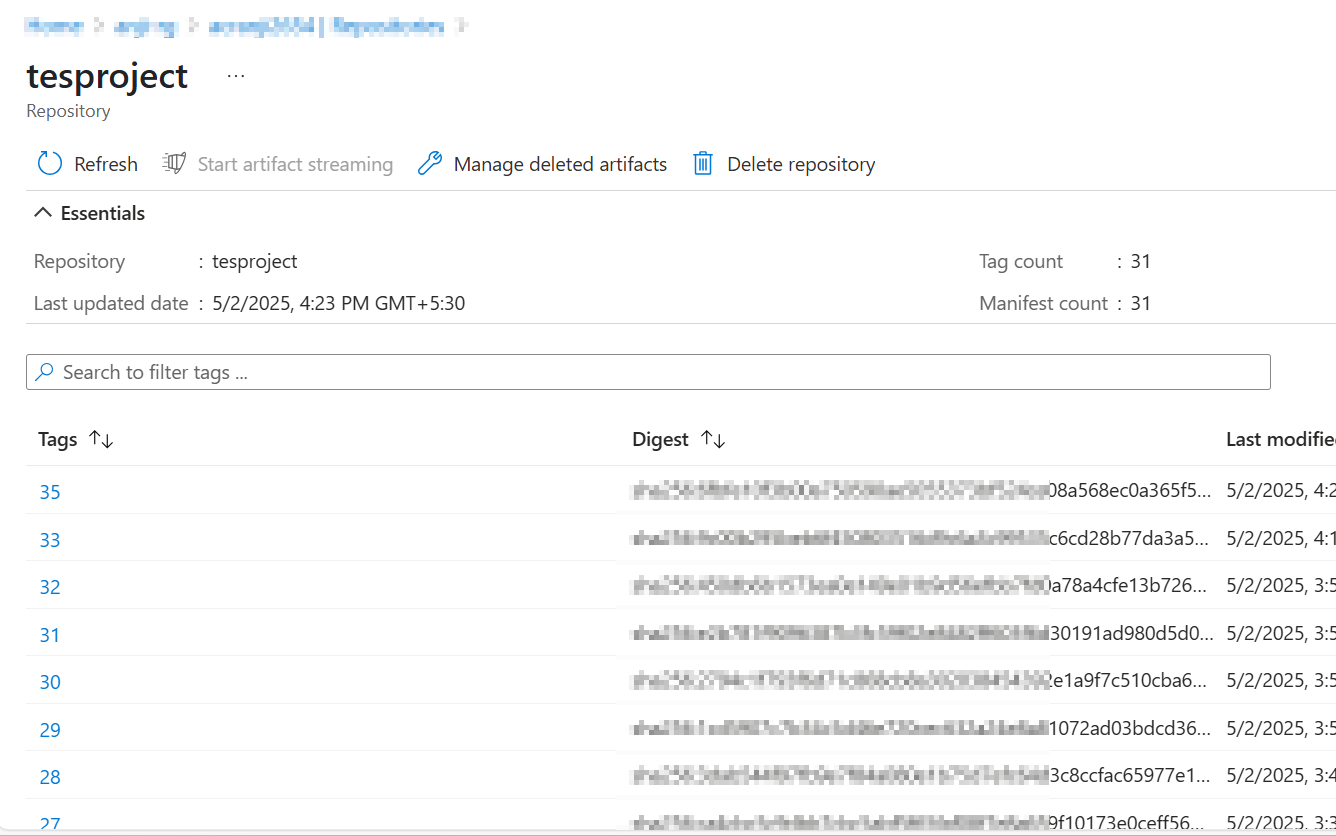

2025-05-02 18_24_16-Welcome to Nginx and 15 more pages - Work - Microsoft Edge
Please let me know how these approaches work for you. If you need any further clarity, please feel free to reach out to me.

manikanta pedapati 0 Reputation points

2025-05-02T15:48:13.8266667+00:00

Thank you @Bheemani Anji Babu for these clear steps.
