Per VM traffic Analysis

Hello , Welcome to MS Q&A

• Navigate to the Traffic Analytics dashboard in the Azure portal.
• Use the search bar or filters to specify the VM you are interested in. You can filter by source or destination IP addresses, ports, or protocols to narrow down the traffic data for the specific VM.
• Once you have filtered the data, you can analyze the communication patterns of the VM with other VMs and PaaS services. This will help you understand the traffic flows and build appropriate firewall rules.

Also to analyze traffic on a per-VM basis using Traffic Analytics in Azure, you can refer to the following documentation:

Traffic analytics overview: This document provides an overview of Traffic Analytics, which analyzes Azure Network Watcher flow logs to provide insights into traffic flow in your Azure cloud.

View topology: This guide explains how to view detailed traffic information about a selected VM using the Traffic tab in the Network Watcher topology.

Traffic analytics usage scenarios: This document describes various usage scenarios for Traffic Analytics, including visualizing traffic distribution by virtual networks.

These resources will help you understand how to use Traffic Analytics to drill down into specific VMs and analyze their communication patterns with other VMs and PaaS services.

Please let us know if it helps

Also let us know if any further ques

Thanks

Deepanshu

Hi @FunMum

To analyze per-VM traffic and build effective network rules, you can follow the below approach.

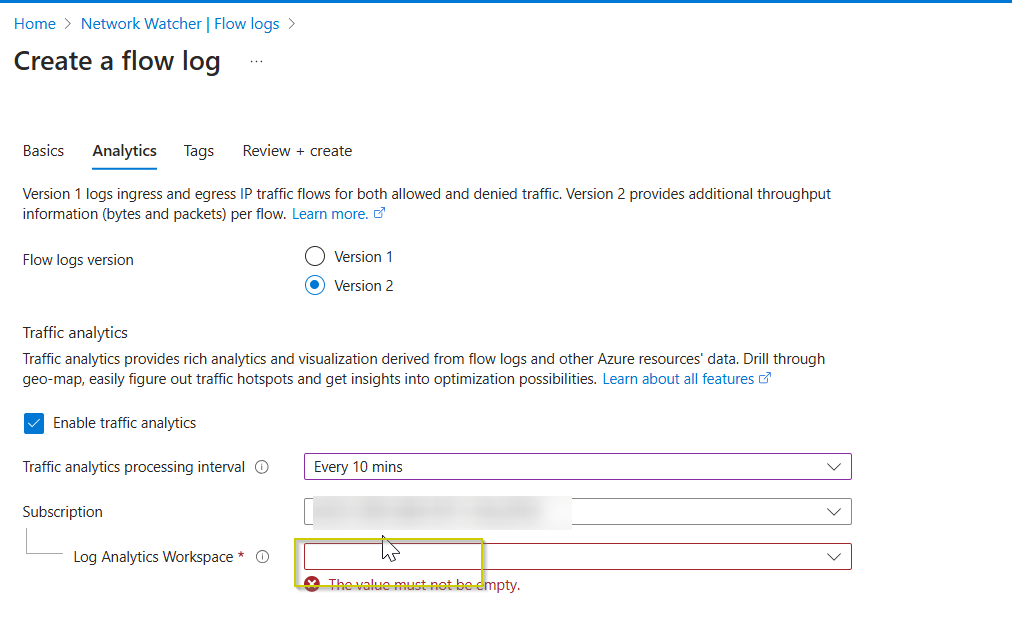

Enable NSG Flow Logs for the Network Security Groups (NSGs) associated with your VMs, and configure them to store logs in an Azure Storage account.

• Integrate the flow logs with a Log Analytics workspace, which enables advanced querying and deeper traffic analysis using KQL.

Note: After creating the flow log, it may take some time for the logs to appear in the Log Analytics workspace.

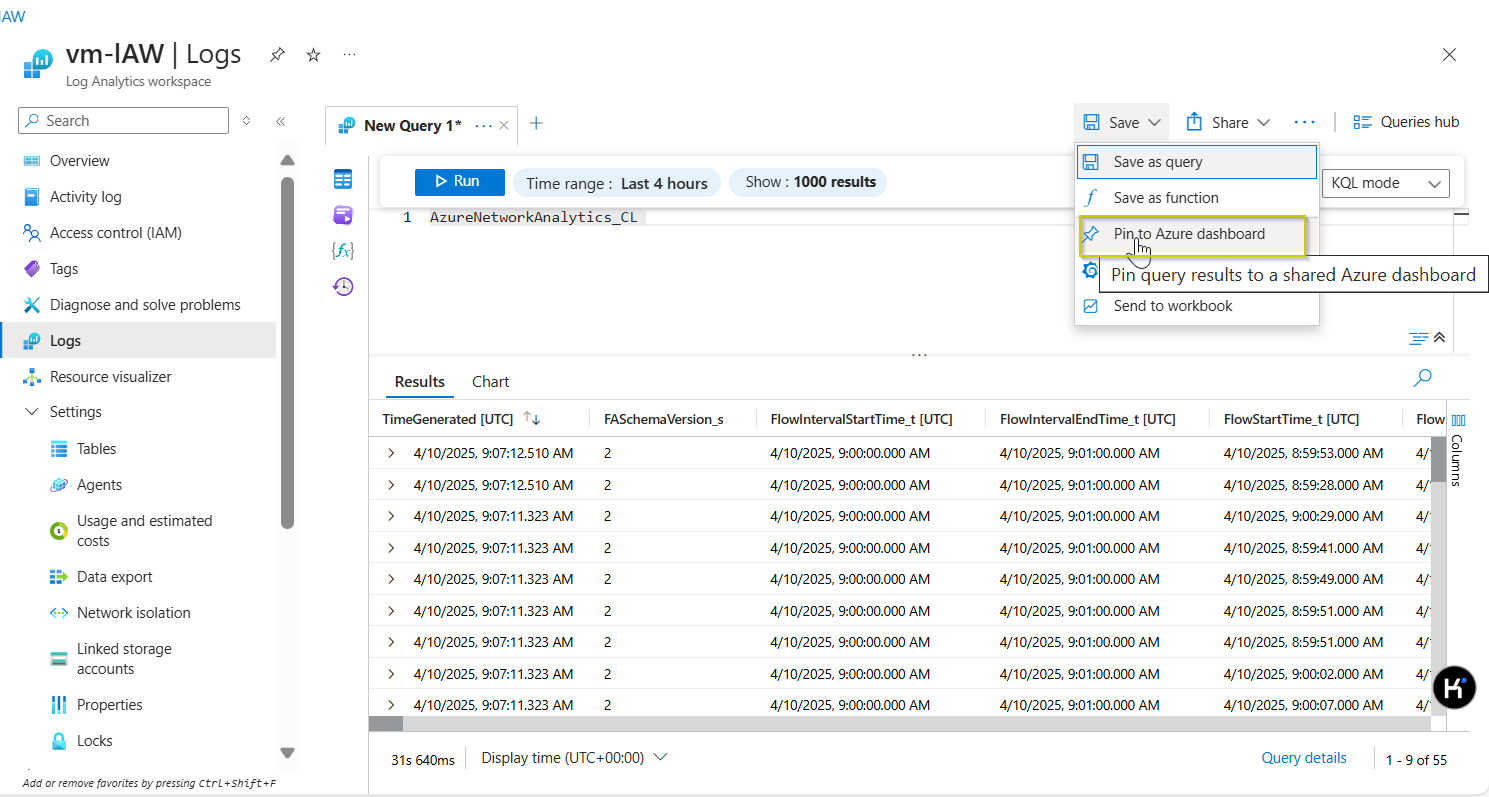

• Use KQL in Log Analytics to filter traffic data specific to individual VMs, helping you identify communication patterns.

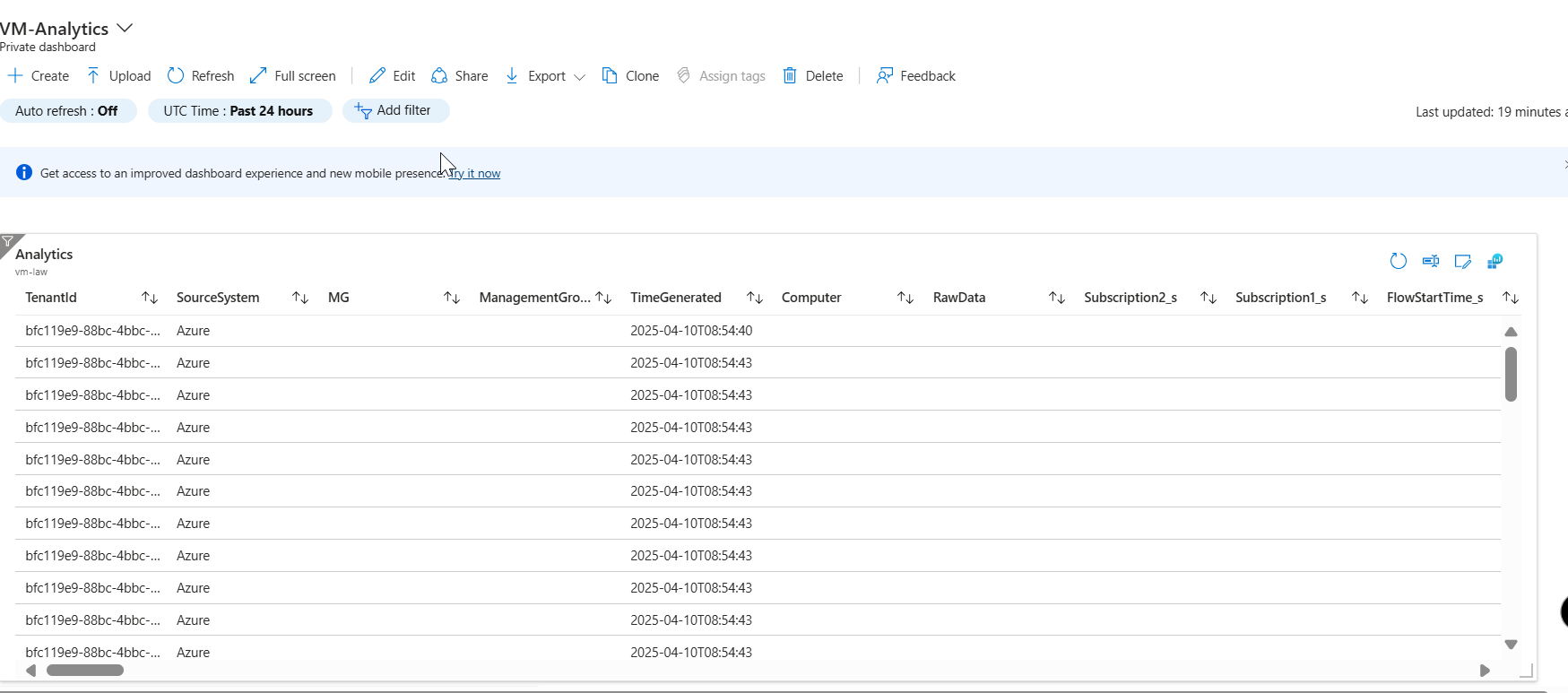

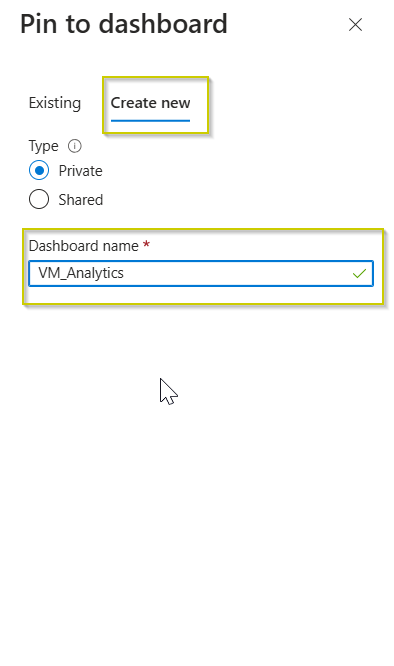

• For better visualization, create custom dashboards that offer interactive charts and graphs to present traffic trends and volume clearly.

This setup provides a powerful way to monitor VM-level traffic and fine-tune your firewall or NSG rules accordingly.

Reference: Log network traffic to and from a virtual machine using the Azure portal

I hope this helps to resolve your issue. Please feel free to ask any questions if the solution provided isn't helpful.
