How to implement streaming response from LLM in Azure Bot using NestJS-BotFramework?

Hi Harinath J,

I understand that you want to Enable real-time streaming responses (token-by-token or chunk-by-chunk) from a backend LLM API to a user through Bot Framework + Direct Line (e.g., WebChat), built with NestJS.

Actually, this is a common challenge when trying to bridge LLM streaming (like OpenAI’s stream=True or SSE-based APIs) with Bot Framework + Direct Line, especially when using NestJS with the nestjs-botframework package.

Here I am directly pointing to your three queries:

1.How can we support streaming responses in a NestJS + BotFramework bot using Direct Line?

To support streaming:

·       Consume the LLM stream (e.g., OpenAI with stream=True or custom SSE) inside your NestJS bot handler.

·       Forward that stream token-by-token (or in small batches) to the client using multiple Activity messages via context.sendActivity().

NestJS Integration Strategy:

// Inside your NestJS bot service (extending ActivityHandler)
this.onMessage(async (context) => {
  const userMessage = context.activity.text;
  await this.streamFromLLMAndSendToClient(context, userMessage);
});

And in your streamFromLLMAndSendToClient():

·       Call your LLM backend (with streaming)

·       Parse tokens from the stream

·       For each token or group of tokens, use context.sendActivity({ type: 'message', text: partialText })

2.Do we need to send multiple Activity messages with partial content from the bot?

YES. That’s the core method of achieving real-time updates in Bot Framework.

Why? Direct Line/WebChat doesn't support updating an ongoing message bubble in a clean way out of the box. The only reliable way to simulate typing/streaming is:

·       Sending multiple Activity messages (e.g., one per token or chunk).

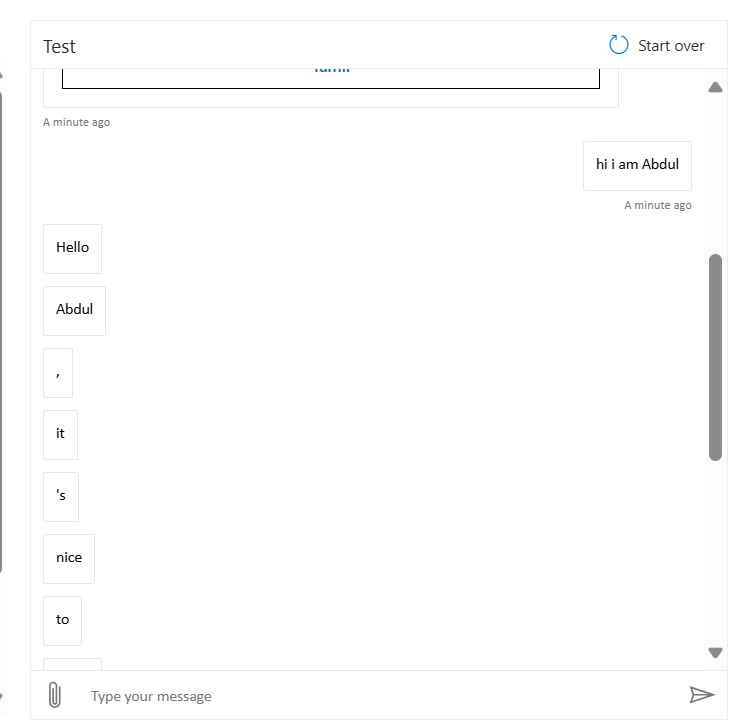

·       These are rendered in WebChat as new lines or bubbles (can customize that).

Optional UX Enhancement: Use typing indicator:

await context.sendActivities([
  { type: 'typing' },
  { type: 'delay', value: 500 }
]);

3.Is there a known pattern to integrate streaming from an upstream LLM API to downstream BotFramework responses?

Yes — here’s the most common and effective pattern:

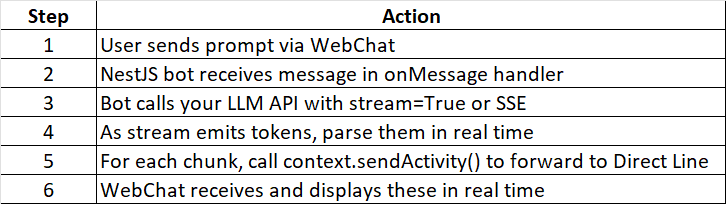

[Pattern]: Streaming from LLM -> Bot -> Direct Line

Code for this Pattern:

async streamFromLLMAndSendToClient(context: TurnContext, prompt: string) {
  const response = await fetch('https://llm-api/stream', { method: 'POST', body: JSON.stringify({ prompt }) });
  const reader = response.body.getReader();
  const decoder = new TextDecoder();
  let batch = '';
  let tokenCount = 0;
  while (true) {
    const { done, value } = await reader.read();
    if (done) break;
    const chunk = decoder.decode(value, { stream: true });
    batch += chunk;
    tokenCount++;
    // Send partial updates every 5 tokens
    if (tokenCount >= 5) {
      await context.sendActivity({ type: 'message', text: batch.trim() });
      batch = '';
      tokenCount = 0;
    }
  }
  if (batch.trim()) {
    await context.sendActivity({ type: 'message', text: batch.trim() });
  }
}

Hope this helps, do let me know if you have further queries.

Thank you!
